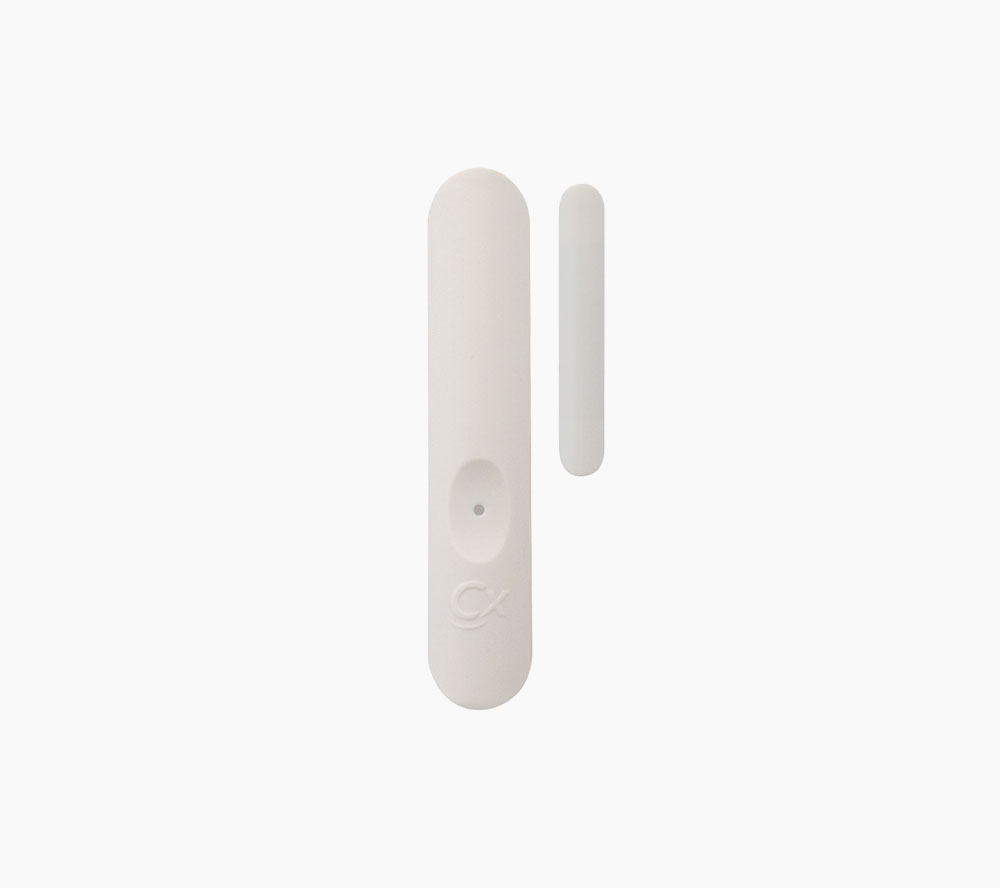

Varco CTW

Description

62.300 Varco CTW white 69,00
62.301 Varco CTW brown 69,00
62.358 White magnet 8,00
62.359 Brown Magnet 8,00
61.847 Replacement lithium battery 3V 1200mA CR123A 8,00

Two-way door/window contact with dual channel (2 different zones in the control panel). Endowed with reed + 2 additional inputs. Possibility to use the reed + 1 input, freely configurable as alarm zone (NC) or through string roller shutter detector with digital pulse counter. Possibility to use the 2 inputs (reed bypassed) as separated zones, freely configurable as NC zones or NC zone + string roller shutter detector with digital pulse counter. It transmits two different information to the control panel so to manage two different zones.

Monitored, lithium battery provided.

Dati Tecnici

Sensor element Reed interno
Maximum distance magnet – detector 2 cm
Installation per Interni
Inputs 1 per contatto magnetico esterno | 1 per contatto ausiliario di tipo impulsivo o a stato configurabile via software
Anti-burglary Apertura del contenitore e distacco dalla sede di installazione
Radio protocol Panther
Work frequency 3 canali in banda 868MHz
Type of modulation GFSK
TX max power (EIRP) 13dBm
RF sensitivity -120dBm
Range in free field 1500 m
Power supply 1 batteria al Litio CR123A – 3V
Consumption during transmission 1uA in stand-by / 30mA in TX max potenza
Battery life fino a 5 anni
Operating temperature -10°C ÷ +55°C
Maximum operating humidity 75%
Weight 22 gr
Sizes (L x H x W) 105x20x20 mm
